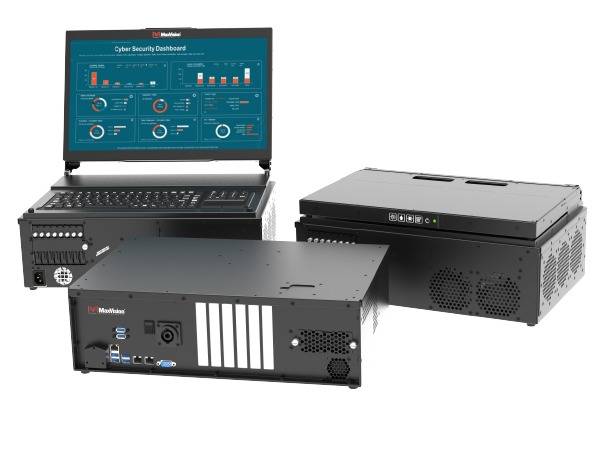

CyberPac® Family

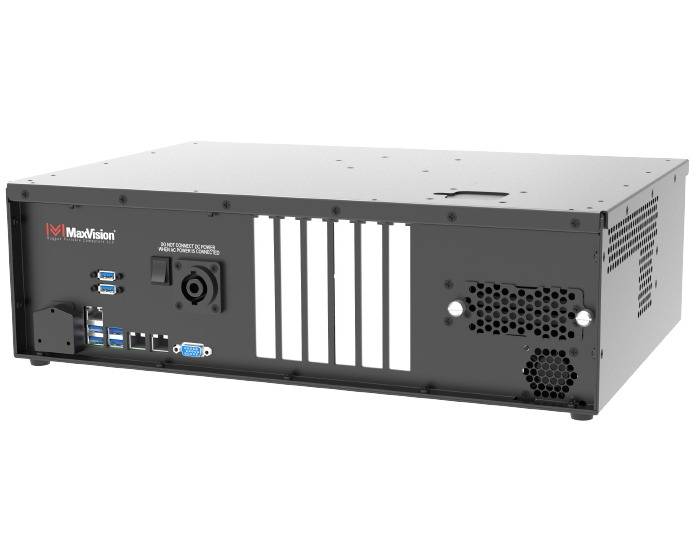

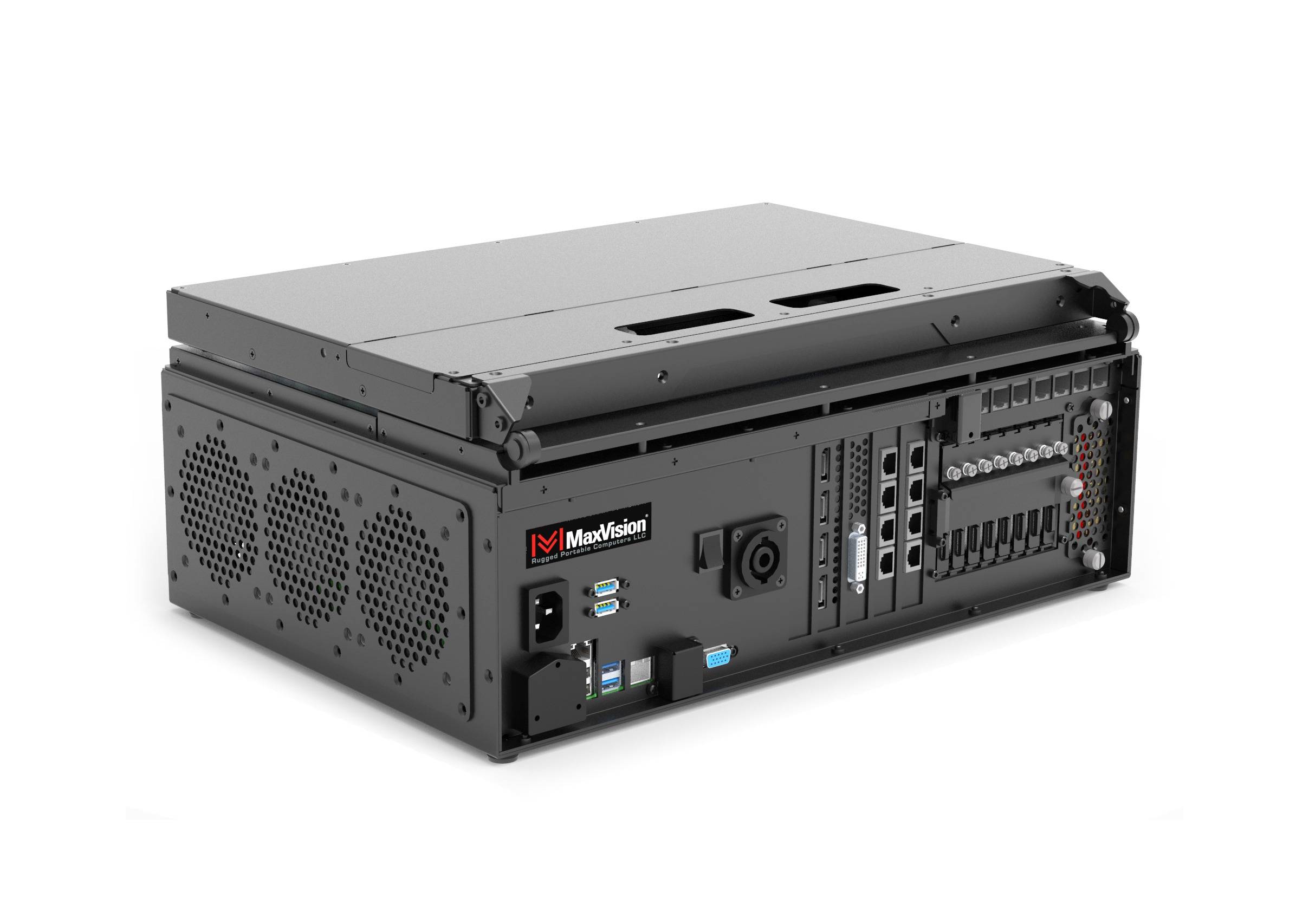

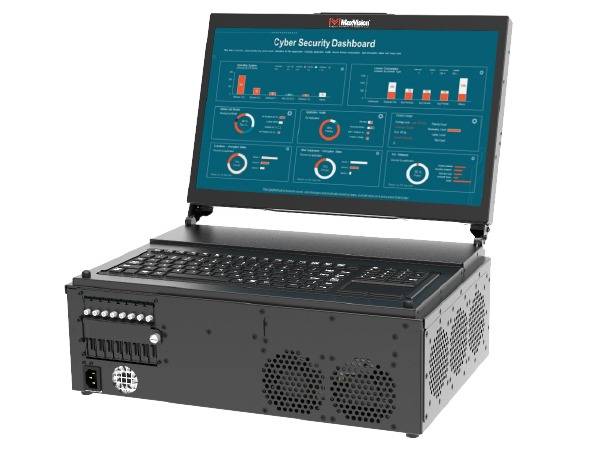

The CyberPac®8211 is a complete server featuring a lightweight and compact size allowing it to be transported in special luggage in aircraft overhead bins.   Alternatively, it can be transported in a Pelican case as checked baggage.  CyberPac®supports dual Scalable Xeon processors providing up to 44 cores and 88 threads along with 1TB of memory.  Two removable systems SSDs, and a removable data magazine which can support either 8 SATA SSDs (61.44TB max) or 5 SAS SSDs(153.6TB max).  5 PCIe slots, an integrated network switch, integrated UPS and global power supply are standard features.

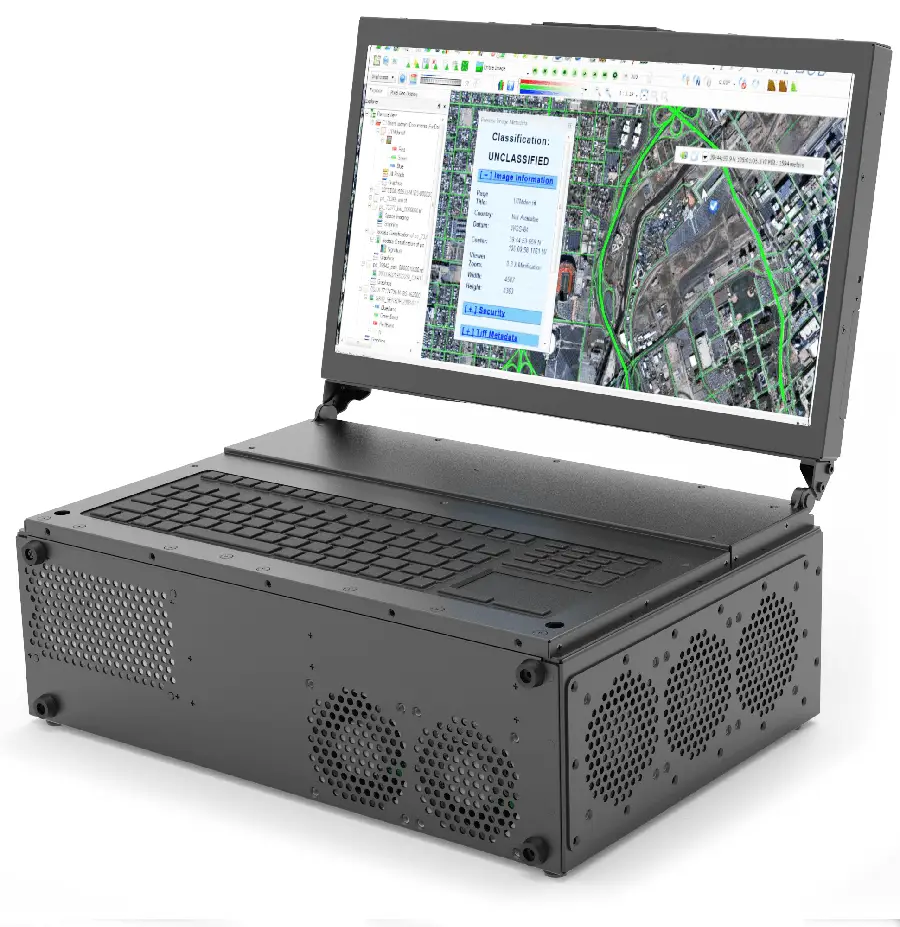

CyberPac®9100 has most of the same features as CyberPac®8211 but uses a single EPYC II AMD processor supporting 64 Xeon compatible core and 128 threads.  All other features are the same.

CyberPac®8102 is an exceptionally compact server useful as a data collection and edge processing for cyber incident response professionals.  This half-size 1U chassis is complete with global power supply, choice of 4C8T, 8C16T, 12C24T, 16C32T Skylake Xeon-D processors.  Up to 512GB of ECC DDR4 memory, two removable NVME 7mm SSDs and a single easy to service M.2 system drive are standard.  Four GbE RJ45, two 10GbE RJ45, and two 10GbE SFP+ ports are standard.  TPM2.0 and IPMI are also standard.

Click here to see Key Features of the CyberPac Server

Dual Scalable Xeon Motherboard (ATX)

Dual Scalable Xeon Motherboard (ATX)

SuperMicro X11DPL-i motherboard, ATX form factor.

High Performance Graphics Cards

High Performance Graphics Cards

Your choice of nVidia Quadro Graphics: Quadro RTX4000, RTX5000, RTX6000, P2200, P4000.  Geforce cards upon request

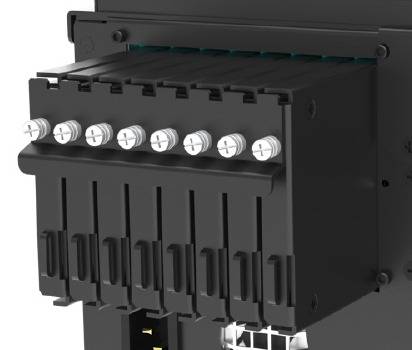

 Removable System Drive(s)

Removable System Drive(s)

Removable system drives can be single or dual (mirror).  Each SSD can be 960GB, 1.92TB 3.84TB, or 7.68TB

H/W Raid Controller

H/W Raid Controller

H/W RAID MegaRAID 9460 controller is a standard feature of workstations and servers with large data arrays of 4 drives or more.  It also supports FIPS 140-2 drives.

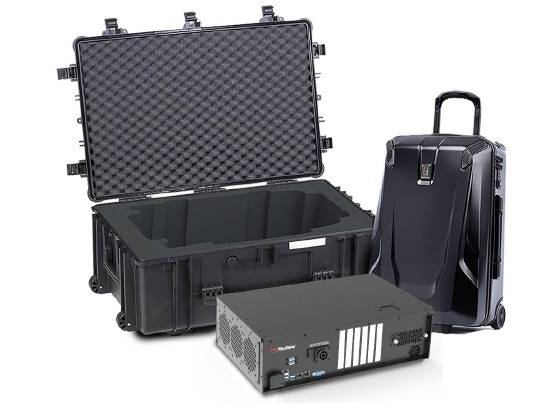

Rollaboard Case System

Rollaboard Case System

The rollaboard bag meets TSA requirements of 22" x 14" x 9" and provides a custom foam receiver for the product.   In addition, a Pelican Air 1607 roller case is included as a MIL-STD 810G for shipping the product freight.

If no rollaboard bag is required a Pelican Air 1607 or 1637 hard transit case is provided depending on the specs required.

Case

Case

All weather, shock, drop and vibration compliant MIL STD 810G roller transit case.

UPS

UPS

Optional integrated UPS providing backup power for 5-10 minutes from an 85+ watt-hr LiFePo4 battery. It also provides operation from external 28VDC.

Environmental 0-50C

Environmental 0-50C

0-50C operation without compromise or processor throttle back during heavy workloads drawing maximum power.  K&N filter captures fine particle dust.  The transit case provides full drop, vibration, humidity, dust, and sand protection during transport.


Available Products

CyberPac®8211 MaxVision Rugged Portable Computer

CyberPac®8211

Learn More Customize/Quote

Rollaboard Dual Scalable Xeon, 10 SSD, 8x GbE SW, 5 PCIe, UPS
